Definition

X-EBS is an enterprise grade distributed block storage solution provided by XSKY. It is based on mainstream open-source scale-out storage system Ceph, seamlessly adapting various open architecture hardware and Linux distributions. X-EBS integrates enhancements of performance, reliability, scalability, and manageability on original open-source version, and implements 24*7 ready self-service portal. X-EBS both helps telecom carriers and CSPs build tens of PB scale storage pool, and enterprise get a cost efficient medium to high class scale-out block storage, converging or replacing traditional storage appliances. It supports virtualization, private cloud, database and other OLTP/OLAP applications.

Challenges

Traditional distributed storages only resolves issues of capacity and scaling-out limitations in proprietary storage appliances. They cannot fully replace proprietary storage appliances in short of narrow applicable scenarios, administration complexity, and poor TCO results. Enterprise user needs better software-defined-storage solution to meet requirements of standardizing and automizing data-center persistence infrastructures other than only for big volume cold data processing.

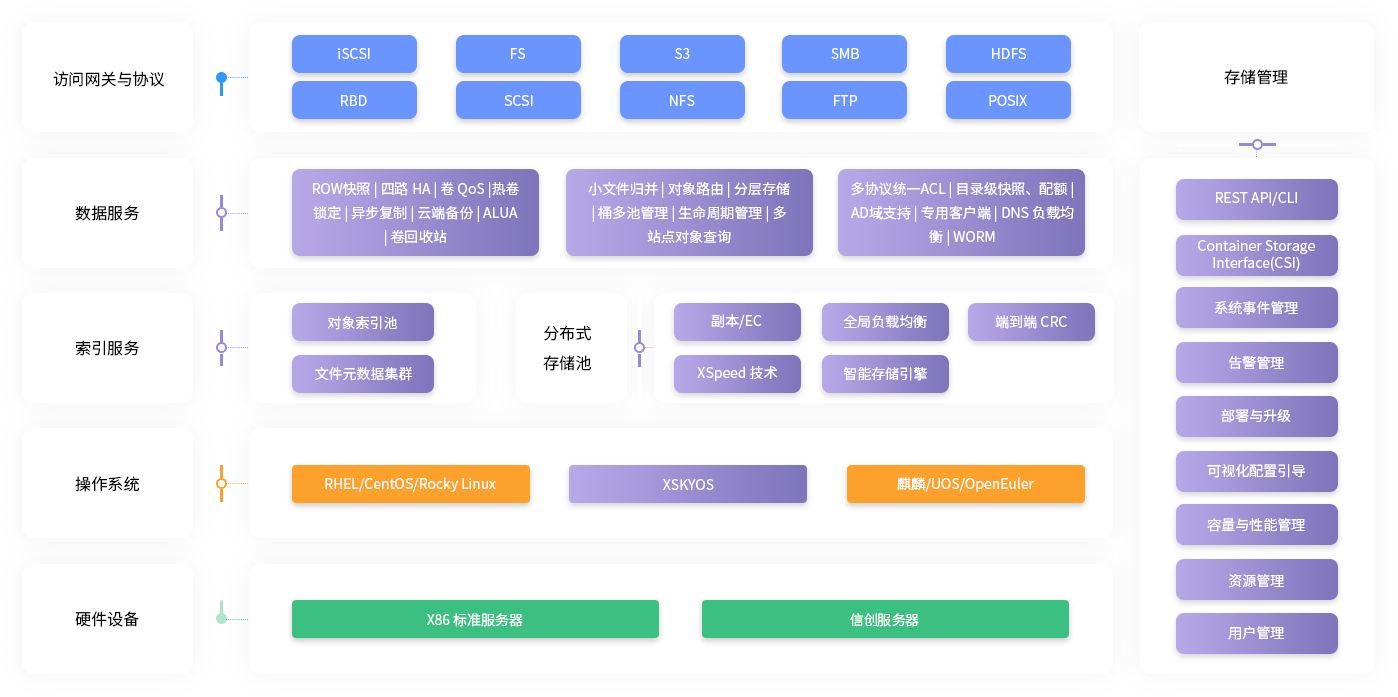

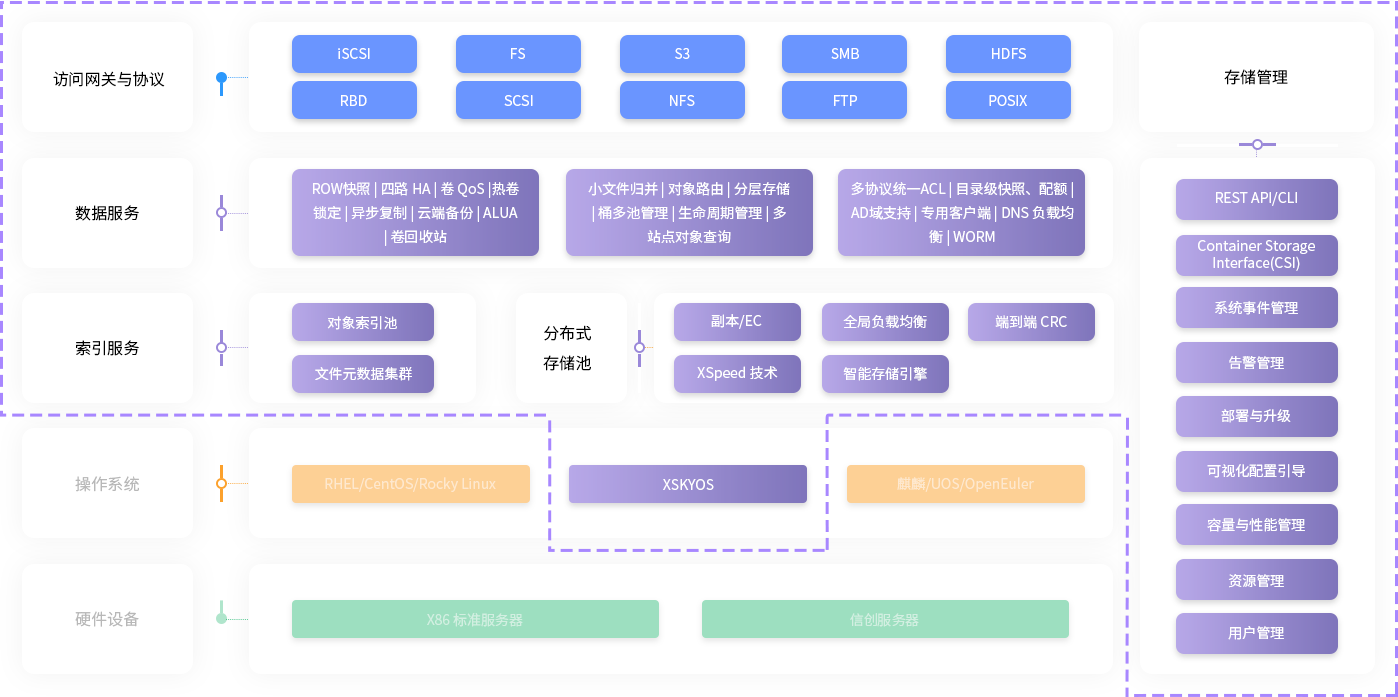

Architecture

X-EBS adapts to kinds of deployment architectures. It supports mainstream storage access interfaces for enterprises, both converged and non-converged deployments of application/virtualization. Meet customers' needs of capacity, performance, and manageability in flexible ways.

Characteristics

High Performance

High Performance

Based on Ceph core, with performance enhancements and flash/networking optimization.

Dynamic QoS

Dynamic QoS

Realtime QoS setting on volume, adapting to seasonal application.

Reliability and availability

Reliability and availability

Redundant design in IO path and management module, no SPF. Multiple data copy with automatic recovery.

Multiple Interfaces

Multiple Interfaces

Support iSCSI, SCSI, and Fiber Channel. Applicable to major applications and help enterprise re-use procured appliances.

Control on Data Recovery

Control on Data Recovery

Fine-grained control on data recovery when storage cluster facing permanent or temporary inconsistency.

Protection Domain

Protection Domain

Impact of malfunctions on software and hardware can be quarantined to a Protection Domain. Other parts of the storage cluster are guarded.

Smart Engine

Smart Engine

Self learning Read/Write Cache, flexible tiering. With redundancy policies, reliability and performance are well balanced.

Manageability

Manageability

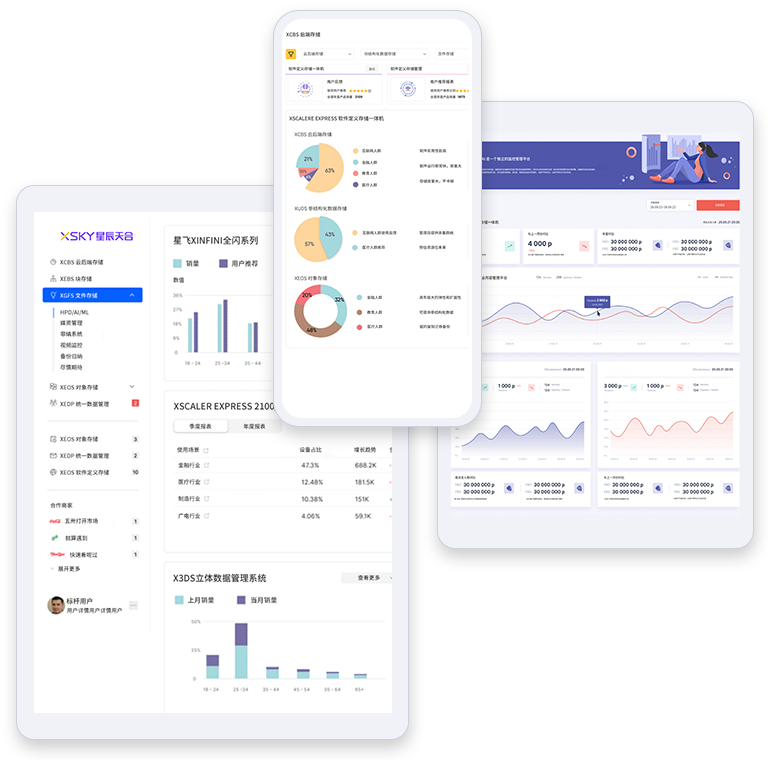

Visualized management and automatic maintenance, covering installation, administration, monitoring, and upgrading.

Advanced Features

Advanced Features

Support EC, snapshot, deep clone, online resizing volume.

Use Scenarios

Database

Database

Provide enough storage bandwidth and latency characteristics for most OLTP and OLAP database. Support multi-path IO and cluster filesystem for DB HA.

Virtualization

Virtualization

Support VDI and server virtualization based on KVM, XEN, and ESXi, with optimization for performance and reliability. Adapt to mainstream OpenStack distributions. Deploy both in hyper-convergence and storage pool.

Bigdata

Bigdata

Optionally integrate with HadoopFS. User can utilize Map-Reduce paradigm for data analytic tasks, reducing data migration cost between sites.

Container

Container

Support Docker and other container technologies, help user build data availability feature on container based private cloud.

Compatibility and Scalablity

  • On generic x86 serve
  • Native QEMU/KVM
  • SCSI
  • Fiber Channel
  • iSCSI multi-path
  • Docker
  • OpenStack Cinder
  • Local SCSI
16

16PB data in single cluster.

1

1 Volume of maximum 1PB size.

1024

1024 servers in single cluster.

99.999

99.999% reliability (Data service available time).
